flextableパッケージでRで作成した表をWordやPowerPointに出力する[R]

こちらを参照した。 taehoonh.me

使用するのはflextableパッケージ www.rdocumentation.org

データの呼び込み

library(tidyverse)
dat <- mtcars[, 1:6] %>%
    mutate(model = rownames(mtcars)) %>%
    select(ncol(.), 1:(ncol(.)-1))

mtcarsの頭部分を使用する。

サンプルデータ

                              model  mpg cyl disp  hp drat    wt
Mazda RX4                 Mazda RX4 21.0   6  160 110 3.90 2.620
Mazda RX4 Wag         Mazda RX4 Wag 21.0   6  160 110 3.90 2.875
Datsun 710               Datsun 710 22.8   4  108  93 3.85 2.320
Hornet 4 Drive       Hornet 4 Drive 21.4   6  258 110 3.08 3.215
Hornet Sportabout Hornet Sportabout 18.7   8  360 175 3.15 3.440
Valiant                     Valiant 18.1   6  225 105 2.76 3.460

出力の方法

print(object, preview = "docx")

こちらはワードに出力する場合。 "html", "pptx", "docx", "log"と4種類存在している。主に使うのはPowerPoint形式である"pptx"とワード形式である"docx"ではないかと思う。

とりあえずワードに出力

library(flextable)
t01<- flextable(head(dat))
print(t01, preview = "docx")

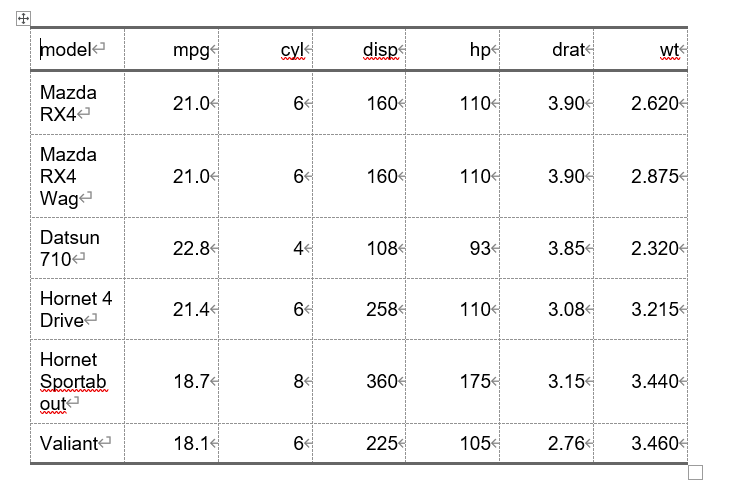

f:id:iDES:20210715112149p:plain

少し整形する

t02 <-
  head(dat) %>%
    regulartable() %>%
    autofit()
print(t02, preview = "docx")

f:id:iDES:20210715112203p:plain

きれいに揃った。

フッターをつける

基本的にはこういう構造でフッターをつける。

add_footer([your dataframe], [column name] = “text”)

t03 <-
  head(dat) %>%
    regulartable() %>%
    autofit() %>%
    add_footer(., model = "* The data was extracted from the 1974 Motor Trend US magazine, and comprises fuel consumption and 10 aspects of automobile design and performance for 32 automobiles (1973–74 models).")

print(t03, preview = "docx")

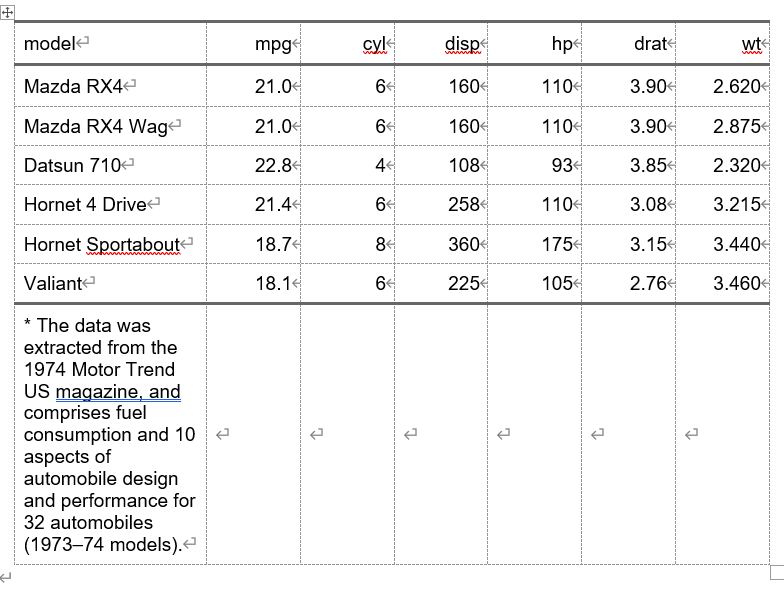

f:id:iDES:20210715112216p:plain

フッターはついたが、一列目についたので、いまいちきれいじゃない。

t04 <-
  head(dat) %>%
    regulartable() %>%
    autofit() %>%
    add_footer(., model = "* The data was extracted from the 1974 Motor Trend US magazine, and comprises fuel consumption and 10 aspects of automobile design and performance for 32 automobiles (1973–74 models).")%>%
    merge_at(., i=1, j = 1:ncol(dat), part = "footer")

print(t04, preview = "docx")

merge_at()コマンドを利用する。

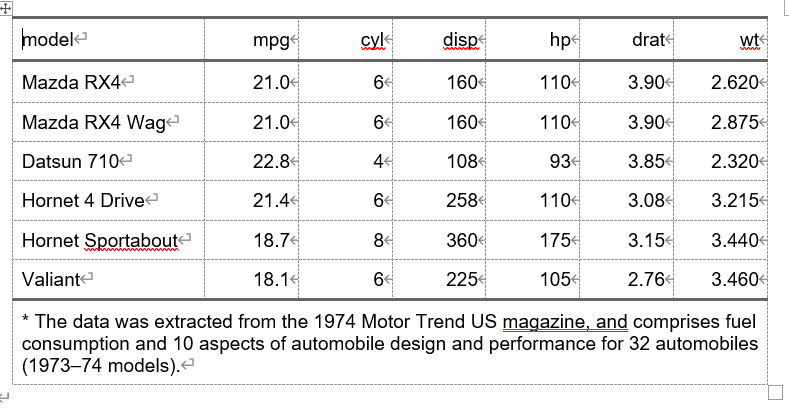

f:id:iDES:20210715112229p:plain

フッターを2つつける。

t05 <-
  head(dat) %>%
    regulartable() %>%
    autofit() %>%
    add_footer(., model = "* The data was extracted from the 1974 Motor Trend US magazine, and comprises fuel consumption and 10 aspects of automobile design and performance for 32 automobiles (1973–74 models).") %>%
    merge_at(., i = 1, j = 1:ncol(dat), part = "footer") %>%
    add_footer(., model = "** This is a data frame with 32 observations on 11 (numeric) variables. The source is from Henderson and Velleman (1981), Building multiple regression models interactively. Biometrics, 37, 391–411.", top = F) %>%
    merge_at(., i=2, j = 1:ncol(dat), part = "footer")

print(t05, preview = "docx")

パイプでつなげればいいようだ。

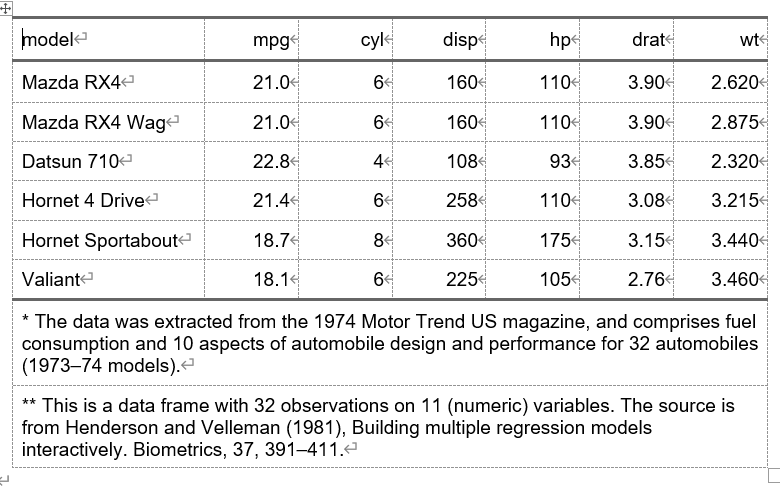

f:id:iDES:20210715112242p:plain

ヘッダー・タイトルをつける

t06 <-
head(dat) %>%
    regulartable() %>%
    autofit() %>%
    add_footer(., model = "* The data was extracted from the 1974 Motor Trend US magazine, and comprises fuel consumption and 10 aspects of automobile design and performance for 32 automobiles (1973–74 models).") %>%
    merge_at(., i = 1, j = 1:ncol(dat), part = "footer") %>%
    add_footer(., model = "** This is a data frame with 32 observations on 11 (numeric) variables. The source is from Henderson and Velleman (1981), Building multiple regression models interactively. Biometrics, 37, 391–411.", top = F) %>%
    merge_at(., i=2, j = 1:ncol(dat), part = "footer") %>%
    add_header(., model = "Table1. First six car models in the mtcars dataset", top = T) %>%
    merge_at(., i = 1, j = 1:ncol(dat), part = "header") %>%
    align(., i = 1, j = 1:ncol(dat), align = "center", part = "header")

print(t06, preview = "docx")

パイプで接続するadd_header()を書くとヘッダー・タイトルになる。align = "center"を指定するとセンタリングされる。この辺りはhtml的である。

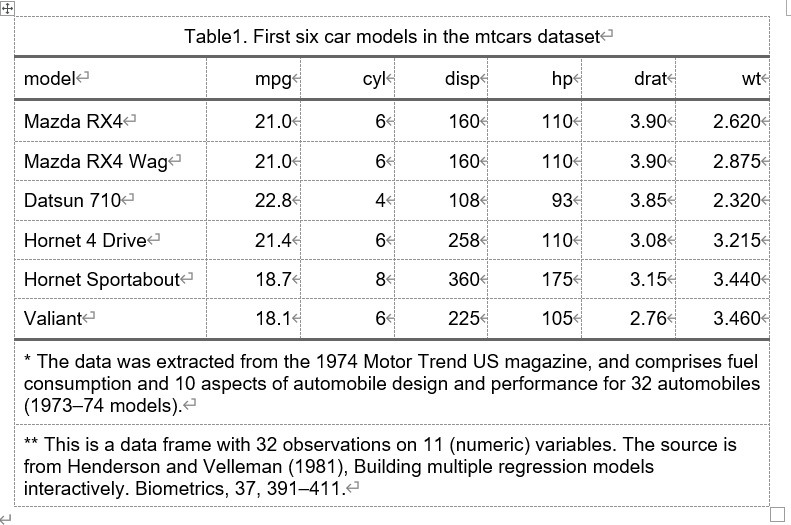

f:id:iDES:20210715112254p:plain

参照

日本語で解説したべージも発見。

https://www.karada-good.net/analyticsr/r-607
